Rodney's 100 Gallon Setup

[outofthewater]

Figured it's time for me to start my thread
I've been I. The hobby on and off for the last 5 or so years and this is the biggest setup I've done so by all means if I'm missing something please fill me In

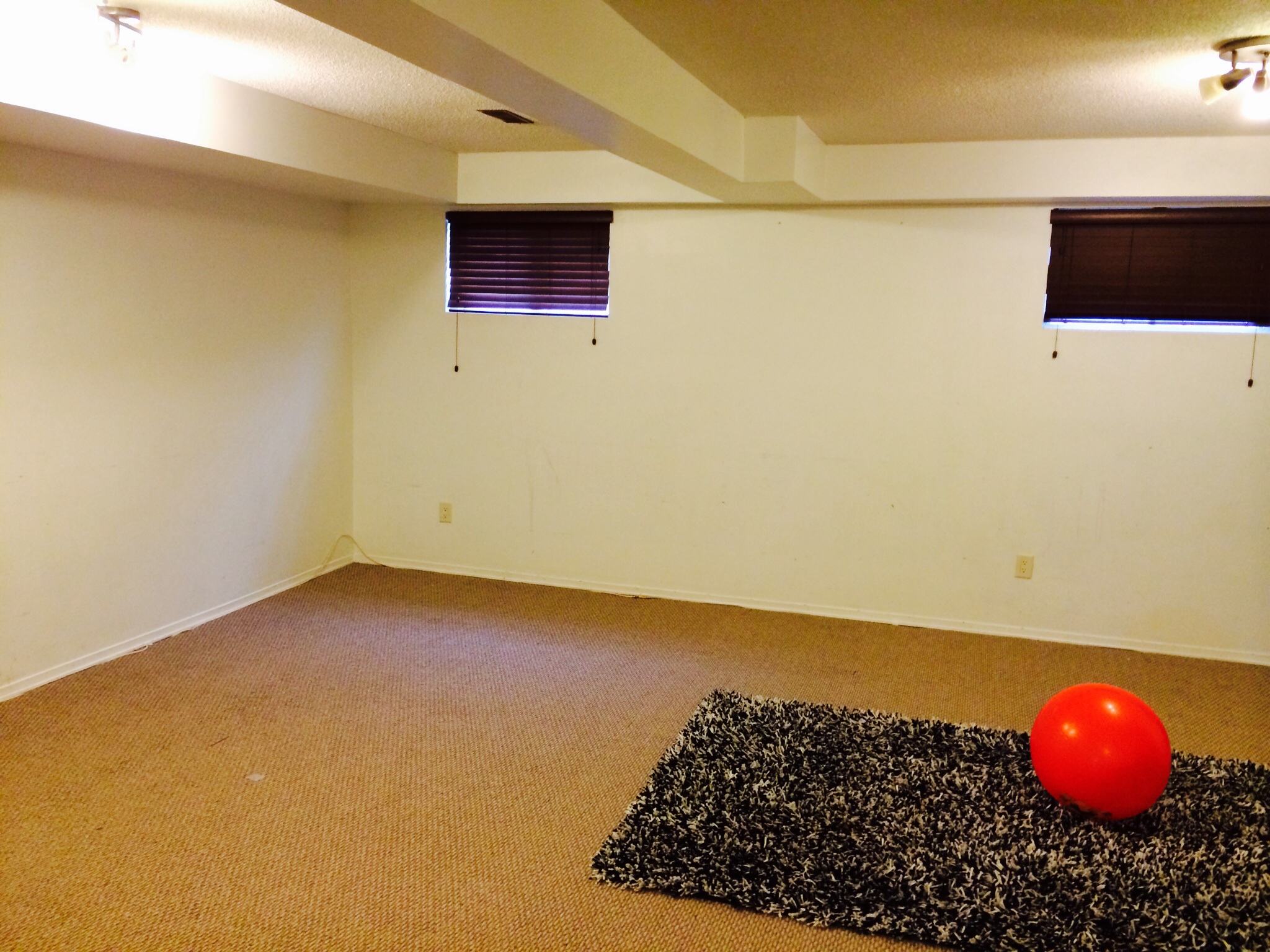

So I bought a new house and been buying equipment slowly

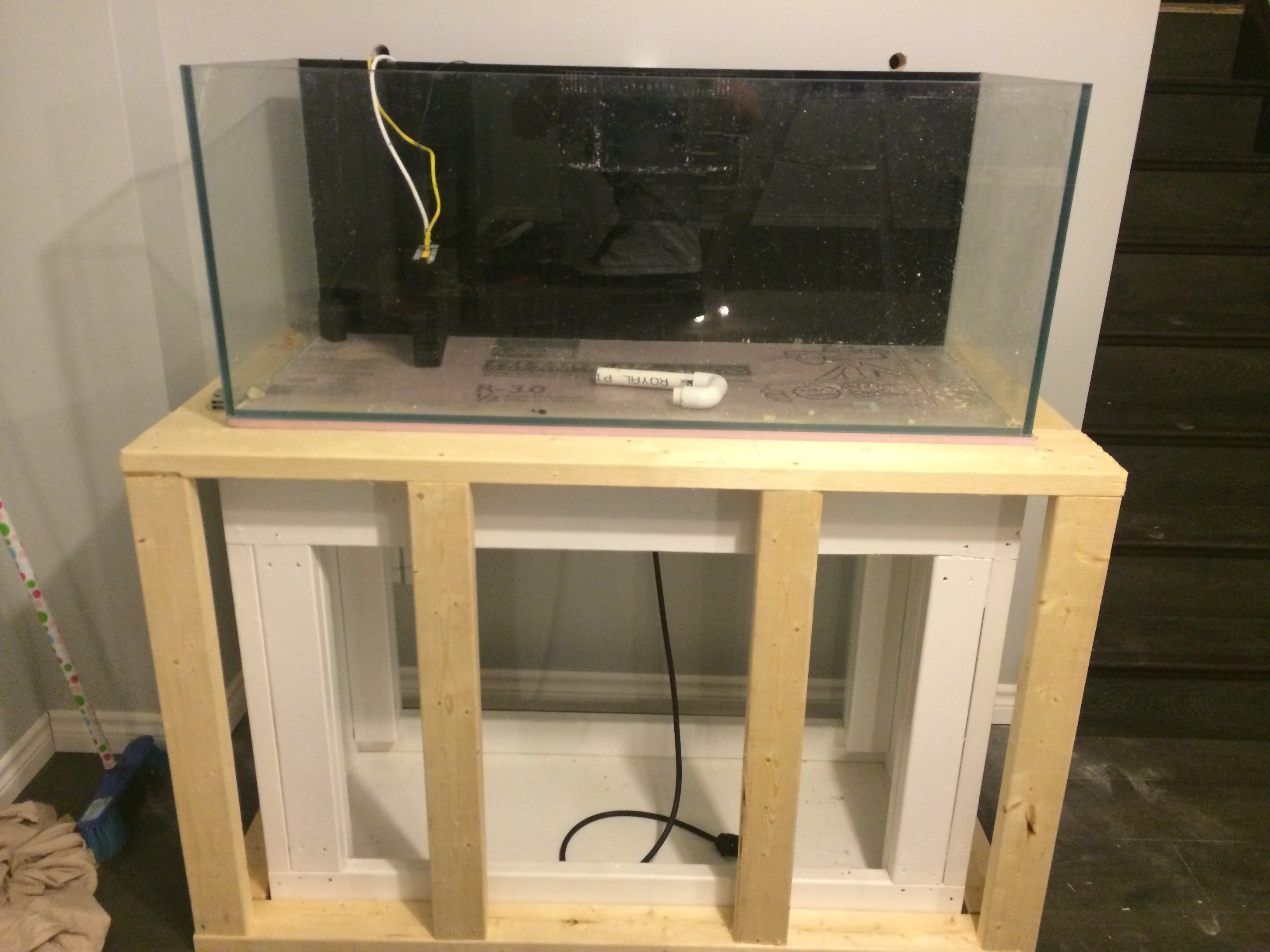

So far I purchased a 100 gallonish starphire used tank. It came with a very basic home made stand. So I beefed it up and plan on putting tile and a granite ledge.

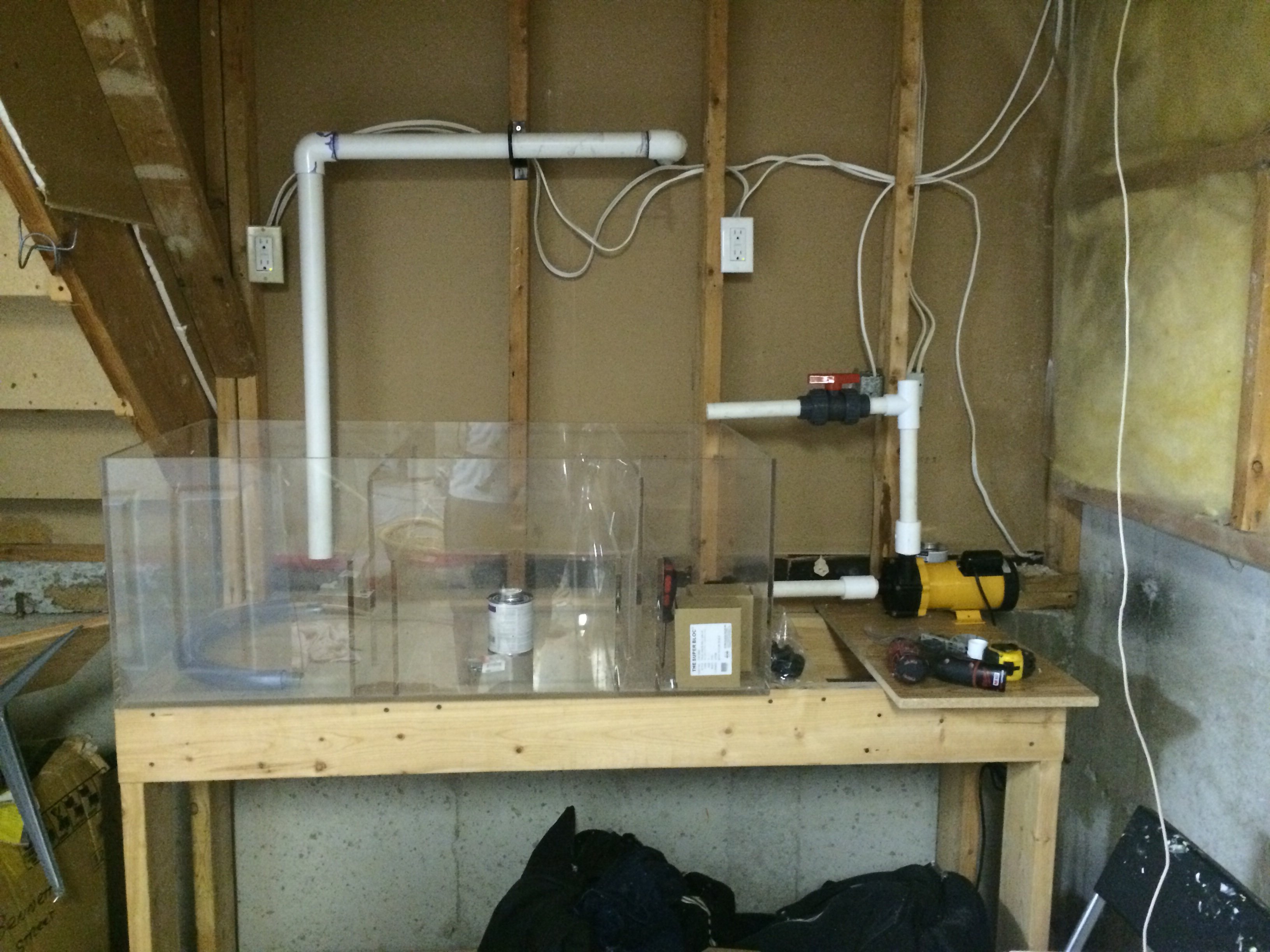

So far its almost plumbed in.
1 1/2 drain with a pan world return pump 1" and then will tee it off to two 3/4 returns
I also wanna run all my reactors with this pump.



[teebone110]

Looks good, what type of drain system do you have? Is it a single durso? If you want to make it fail safe, maybe consider a bean animal design, that way your safe in case something gets into your drain. Lots of info out there to read if your not familiar with it.

I would also consider eliminating the horizontal run in your drain line if possible, but it might just take some trial in error to see how quiet it gets once things are running.



[outofthewater]

Sounds good
There is only a single drain and it an 1 1/2" pipe I'm gonna start doing some reading now on those options thanks
I figured with the sump being In Another room that I would be able to avoid the noise
How loud do these really get
I figured the skimmer and return pump would be louder



[outofthewater]

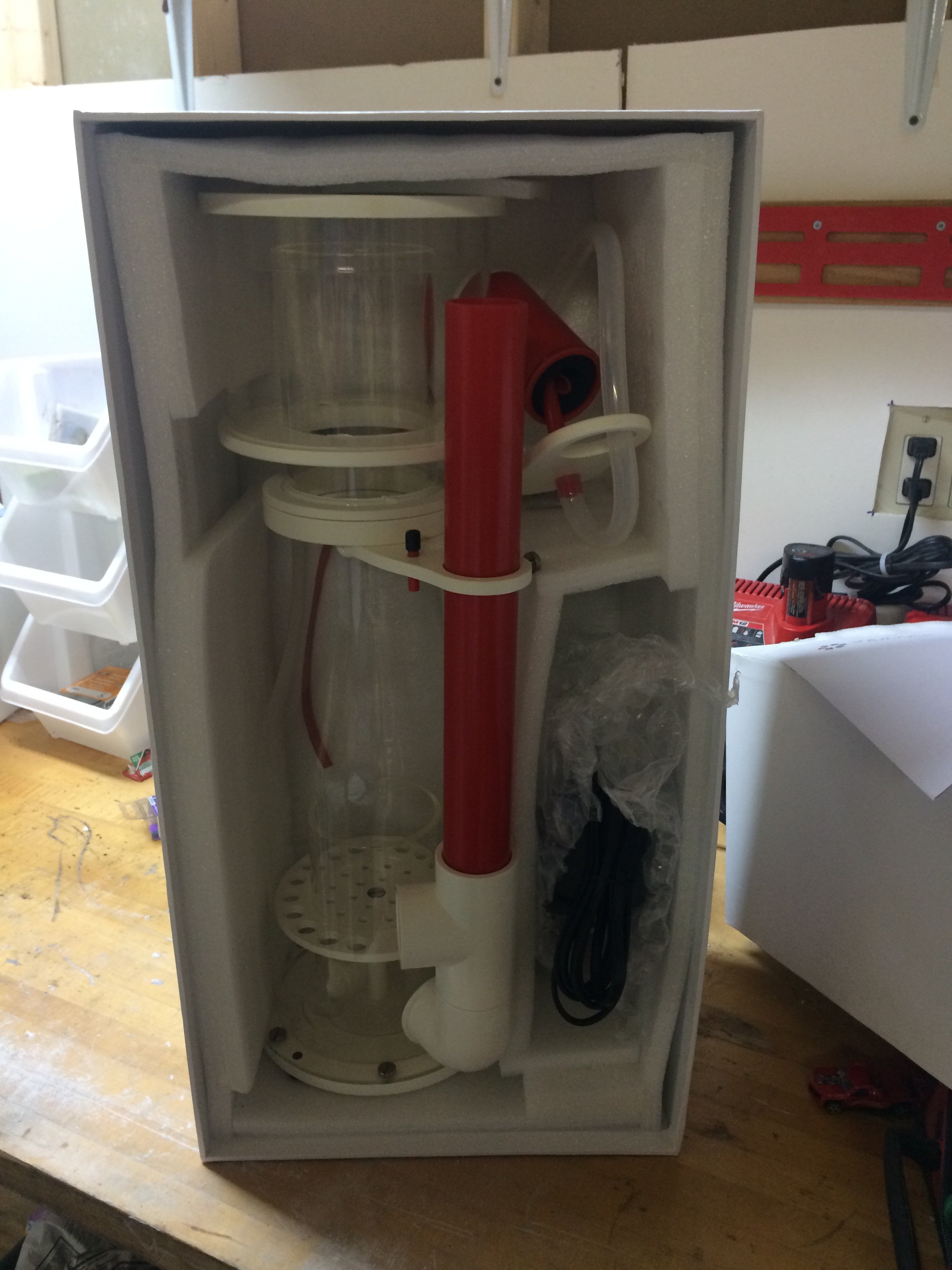

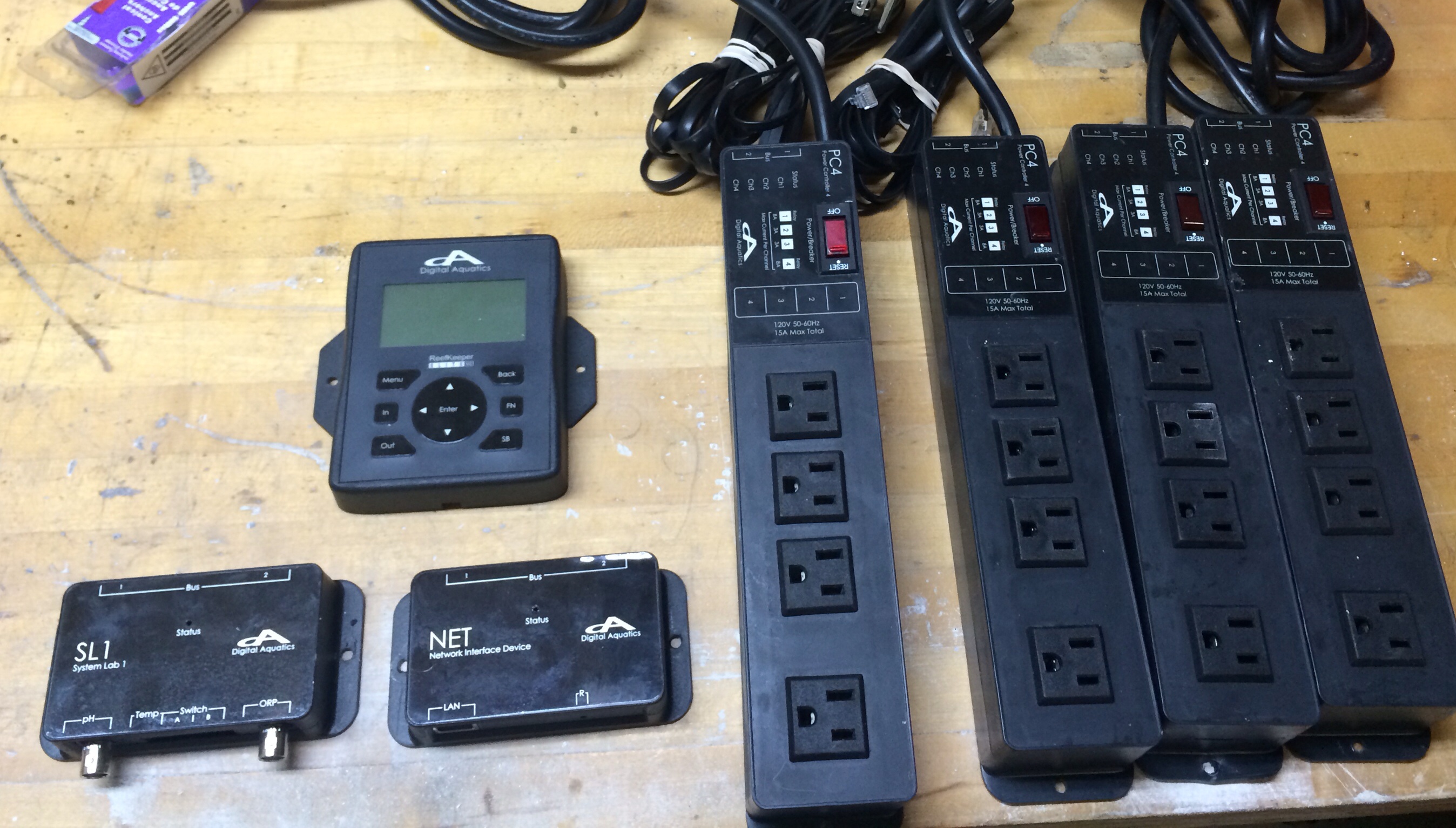

Just got my skimmer this weekend it's a vertex omega 150 and I also bought a reef keeper elite systems



[outofthewater]



[Giglio324]

Niceeee



[sunnykita]

Looking good ! good luck with the build !



[EricTMah]

Nice set up.

Having the sump in the other room certainly helps. But the noise from your drain lines can be quite noisy as well.



[EricTMah]

Oh. If you have any issues setting up the NET Module for the RK let me know. I just set mine up and was pulling out my hair. But all is good now.



[outofthewater]

Sounds good lol I've been doing lots of reading having 4 power bars I'm hoping to have the whole system run off it



[yveterinarian]

Looking good so far. Good luck with the build.



[EricTMah]

You can actually split some of the plugs and run multiple pieces of equipment off one plug. You just need to make sure the amps are within the limit of the power bar.

Sent from my Z10 using Tapatalk 2



[outofthewater]

Sweet I actually ran new 4 new outlets that are dedicated to the aquarium and from there I will add my power bars



[Jewel]

Looks great Rodney, any plans for Corals and fish, SPS or LPS



[outofthewater]

Im gonna be going sps but I know there will be lps I never really had luck wit zoos



[outofthewater]

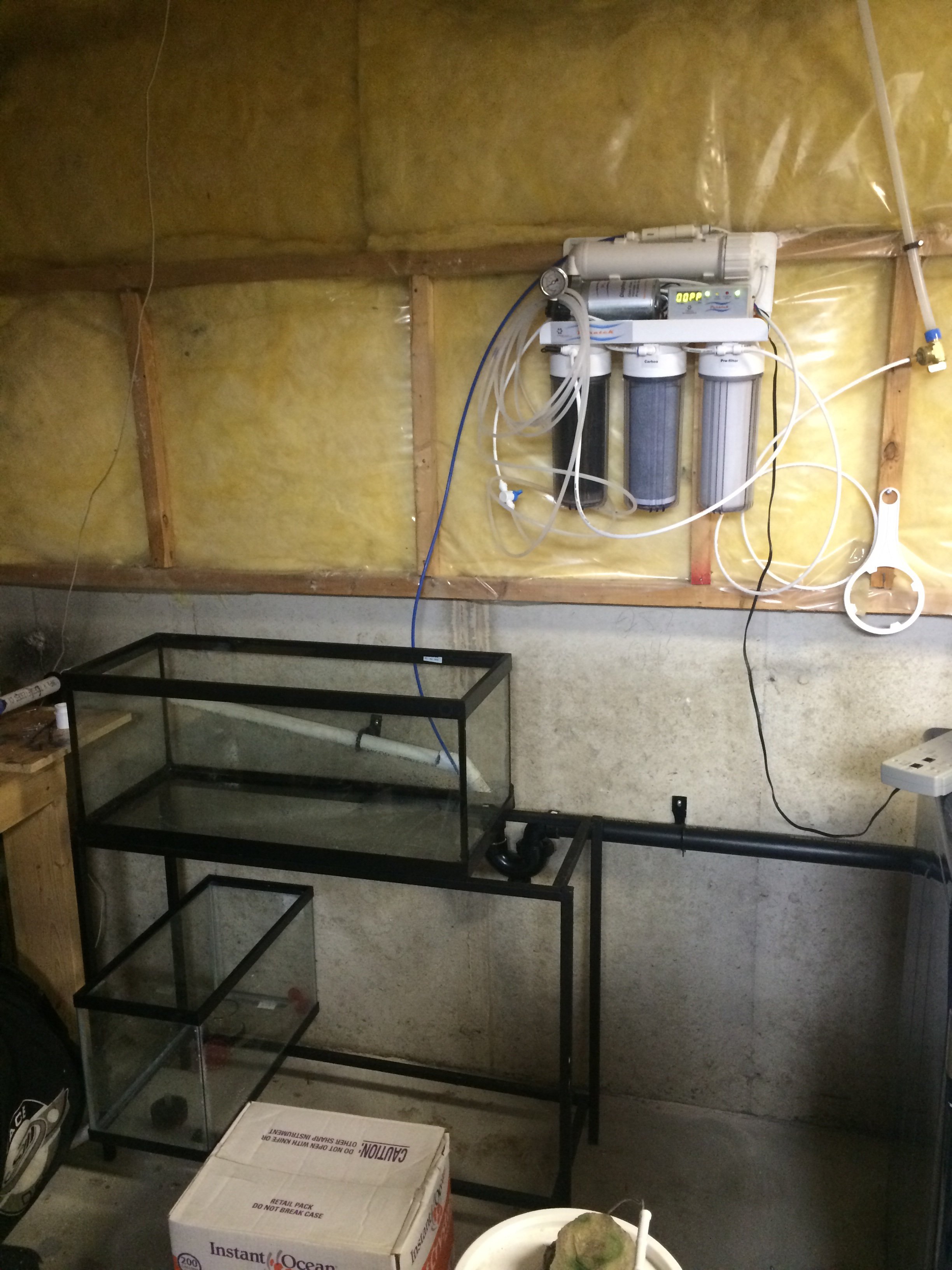

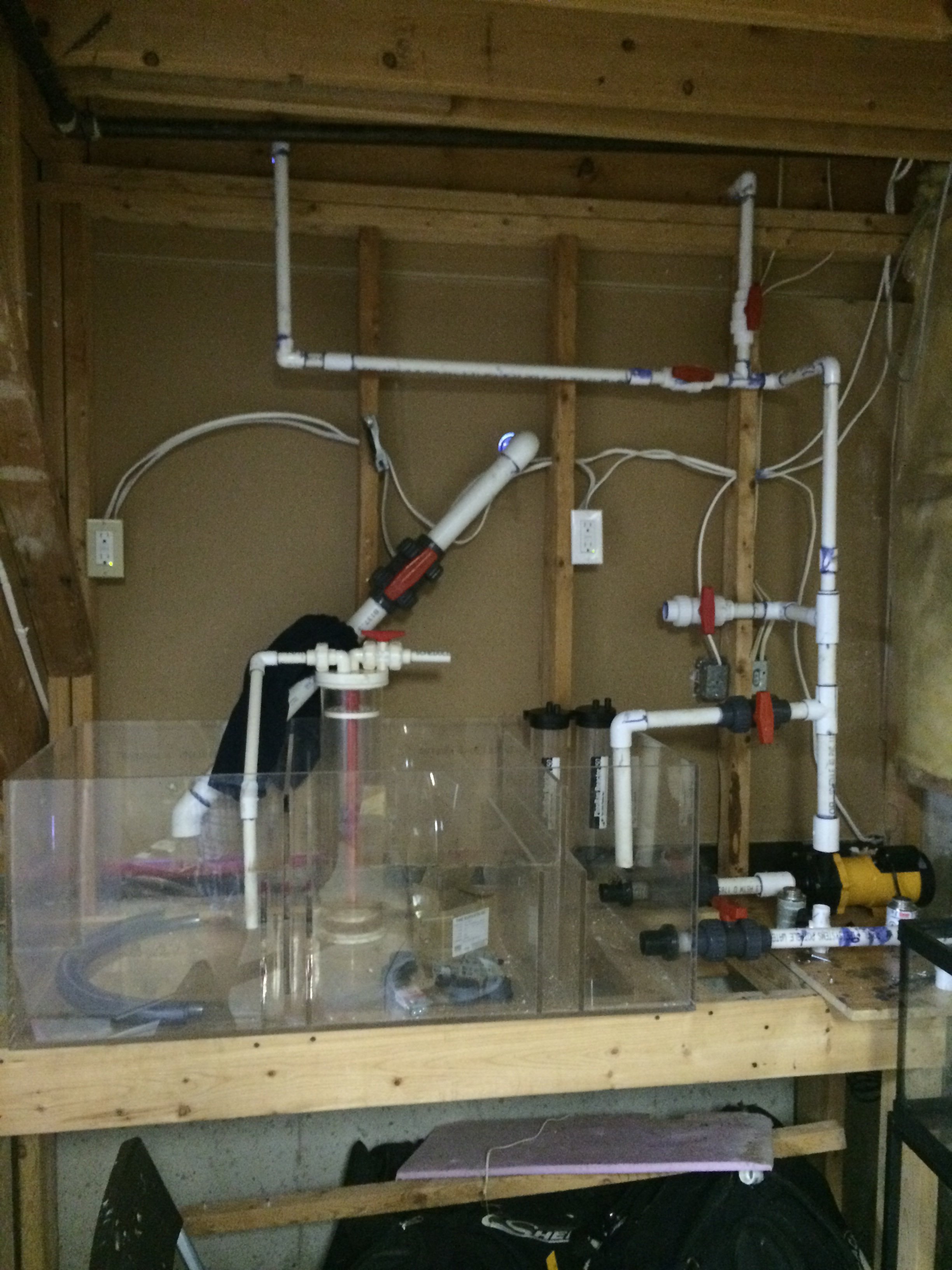

Got my tank plumber in today plumbing drain installed so I just have to open a valve for water changes and ro unit hooked up
Plus I bought a used t5 unit from Dave solo that I got all cleaned up and hung



[outofthewater]

Some pictures



[scubasteve]

coming along pretty nicely i see



[outofthewater]

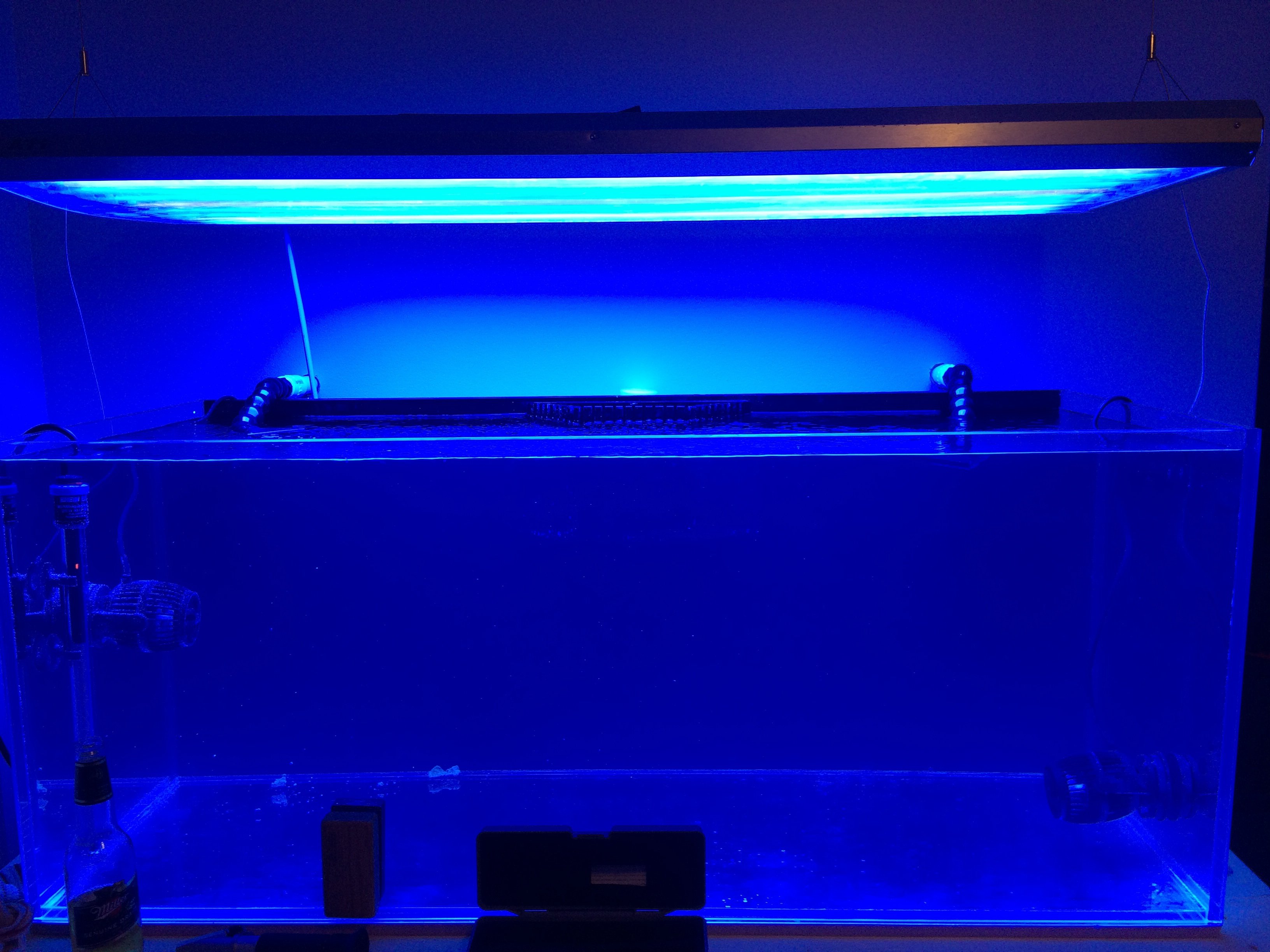

We'll I've got the tank full and all plumbed in pick up a 48" ati 8 bulb fixture...fits perfect I've got 3/8 on each side of the tank that this light doesn't cover should have no problem about lighting
I decided to go barebottom
Also got 2 jabao r15 for circulation

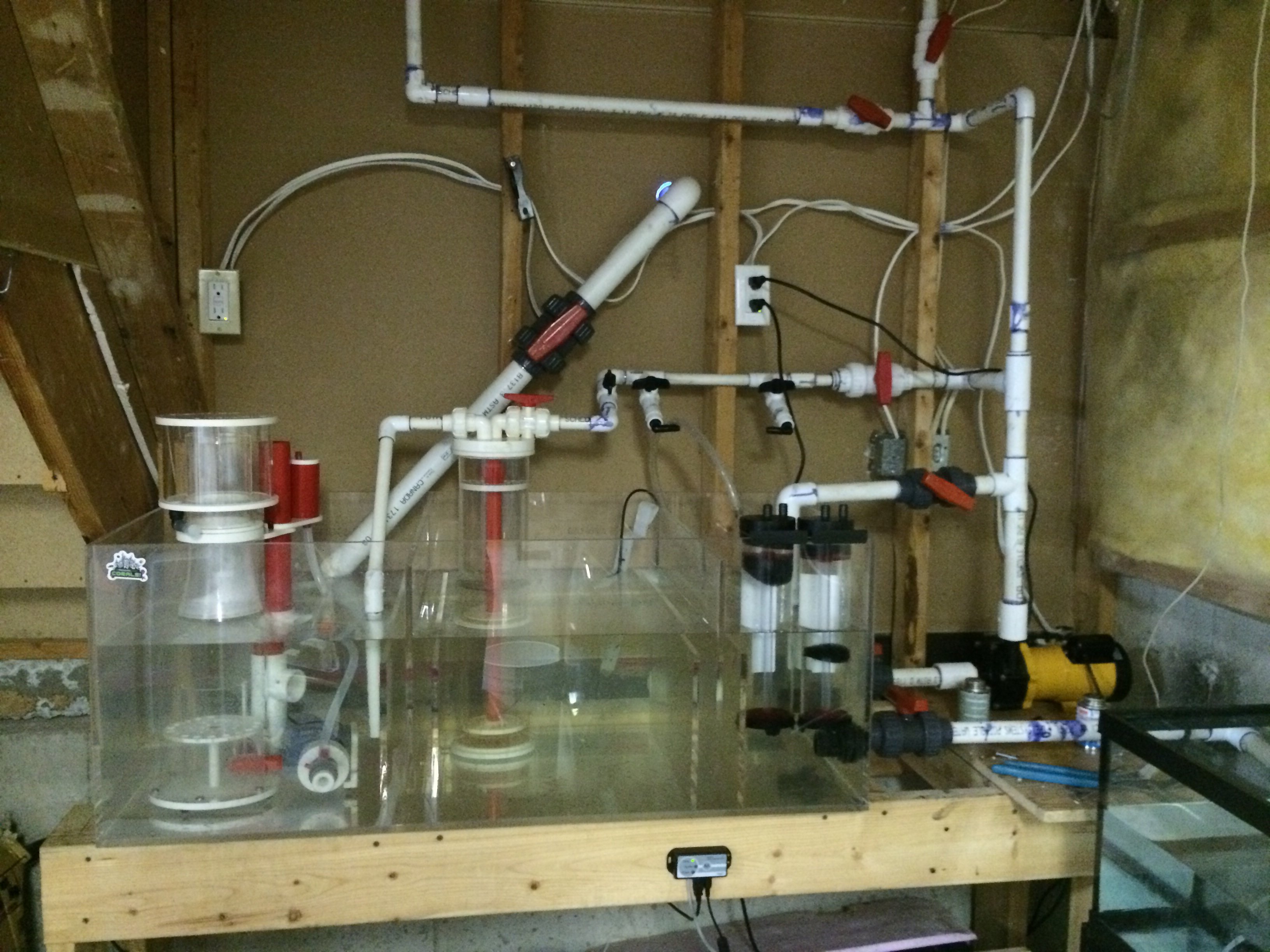

And the tank is all plumbed in
Went with a vertex 150 omega
A vertex bio pellet reactor and two tlf 150 reactors all that are going to be powered by the return pump
